DS660A+
Torque (4.8V): 21.05 kg-cm / 292.3 oz-in
Torque (6.0V): 26.3 kg-cm / 365.2 oz-in
Speed: 0.186 s (4.8V) / 0.149 s (6.0V)
Weight: 75 g (2.64 oz)

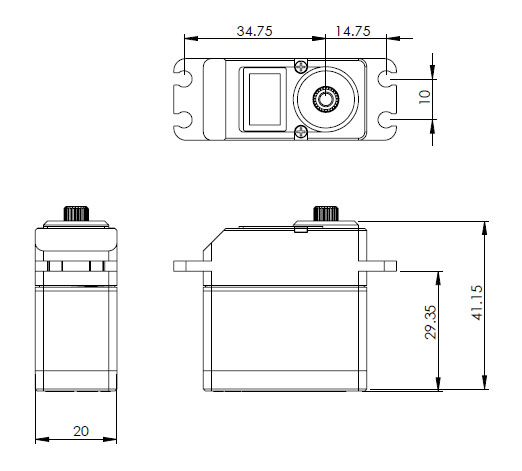

Dimensions：40 x 20 x 40 mm
| SERVO SPECIFICATION | |
| Torque (kg-cm) | 21.05 (4.8V) / 26.3 (6.0V) |
| Torque (oz-in) | 292.3 (4.8V) / 365.3 (6.0V) |
| Speed | 0.186 s (4.8V) / 0.149 s (6.0V) |
| Stall Current (at locked load) | 4.1A (6.0V) |
| Working Voltage | 4.8V ~ 7.0V DC Volts |
| Working Frequency | 1520μs / 333hz |
| Dead Band | 0.001ms (Default) |
| Bearing | 2* Ball Bearing |
| Gear | Metal Alloy Gear |
| Motor | Coreless Motor |
$124.99
- Product Code: S00120A1
- Availability: In Stock
- $124.99
- Ex Tax: $124.99
