HBL980

Recommended Compatiable Gyros

Spartan DS760、Spartan Quark、Futaba GY611、GY601、GY520、ALIGN GP700、GP750、Mikado V-Bar Tail、CSM SL720、Curtis Youngblood Mini-G 、Solid G、Thunder Tiger TG-7000、BeastX Mircobeast

Torque (6.0V): 4.5 kg-cm / 62.5 oz-in

Torque (7.4V): 5.6 kg-cm / 77.8 oz-in

Torque (8.2V): 6.2 kg-cm / 86.1 oz-in

Speed: 0.040 s (6.0V) / 0.036 s (7.4V) / 0.030 s (8.2V)

Weight: 70.29 g / 2.48 oz

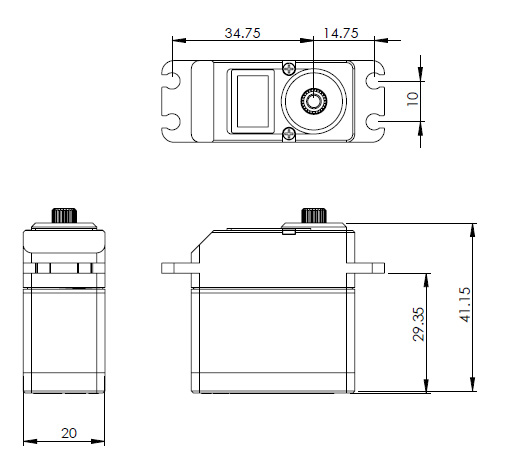

Dimension: 40 x 20 x 40 mm

SERVO SPECIFICATION
Stall Torque (kg-cm)	4.5 (6.0V) / 5.6 (7.4V) / 6.2 (8.2V)
Stall Torque (oz-in)	62.5 (6.0V) / 77.8 (7.4V) / 86.1 (8.2V)
No-load Speed	0.040 s (6.0V) / 0.036 s (7.4V) / 0.030 s (8.2V)
Stall Current	2.3A (6.0V) / 2.8A (7.4V) / 3.1A (8.2V)
Working Voltage	6.0V ~ 8.4V DC Volts
Working Frequency	760μs / 560Hz
Dead Band	0.0004ms (Default)
Bearing	2* Ball Bearing
Gear	Metal Alloy Gear
Motor	Japanese-made Brushless Motor
