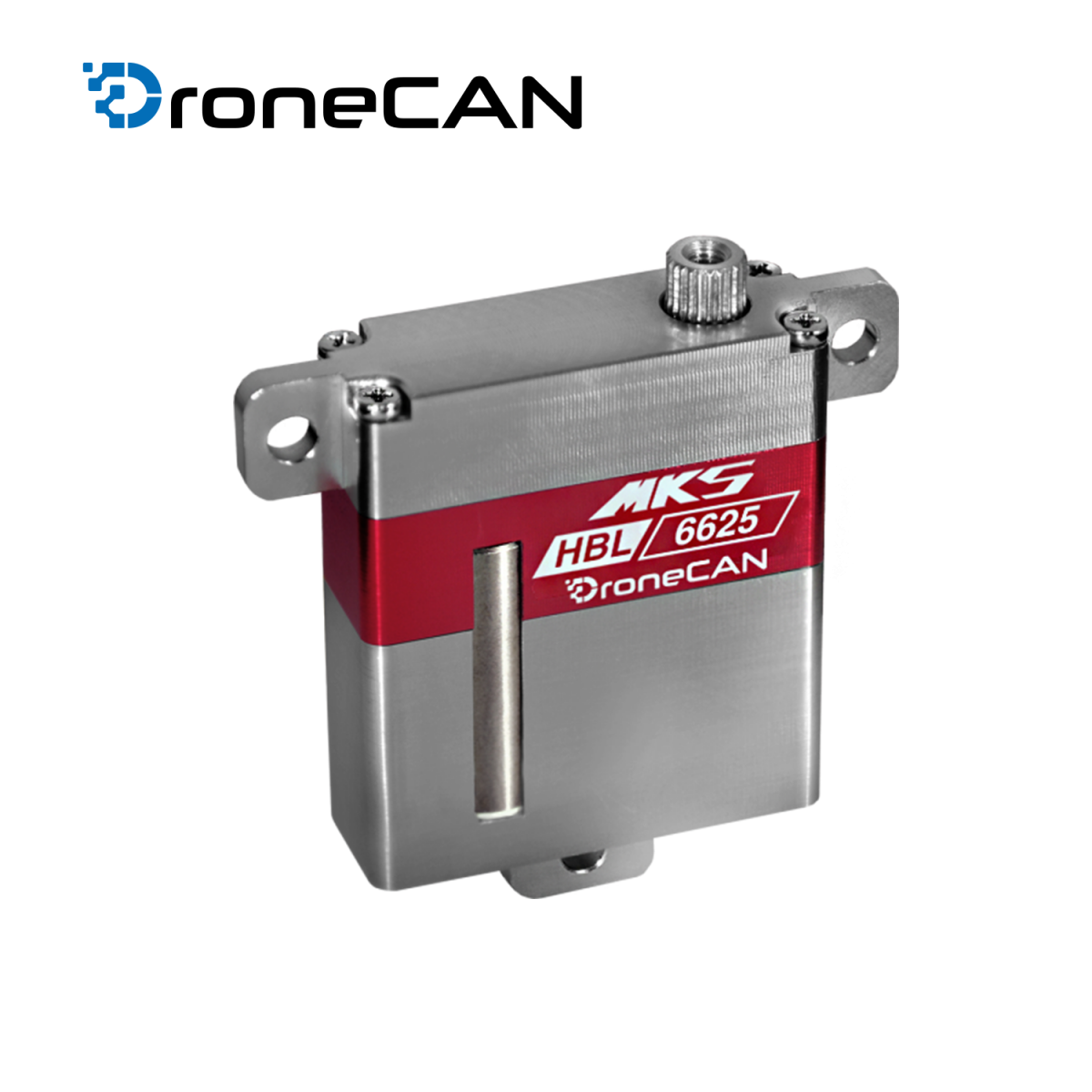

HBL6625-DroneCAN

HBL6625-DroneCAN


  Torque (6.0V):  8.2 kg-cm / 113.9 oz-in

  Torque (7.4V) 9.6 kg-cm / 133.3 oz-in

  Torque (8.2V) 10.4 kg-cm / 144.4 oz-in

  Speed:  0.16 s  (6.0V)   /   0.127 s (7.4V)  /   0.11 s (8.2V)

  Weight:   27.85 g  (0.98 oz)

Dimension : 30 x 10 x 35.5 mm


SERVO SPECIFICATION
Torque (kg-cm) 8.2 (6.0V) / 9.6 (7.4V) / 10.4 (8.2V)
Torque (oz-in) 113.9 (6.0V) / 133.3 (7.4V) / 144.4 (8.2V)
Speed 0.16 s (6.0V) / 0.127 s (7.4V) / 0.11 s (8.2V)
Stall Current (at locked load) 1.2A (6.0V) / 1.5A (7.4V) / 1.7A (8.2V)
Working Voltage 6.0V ~ 8.4V DC Volts
Working Frequency 1000Hz
Dead Band 1.0 μs (Default)
Bearing 2* Ball Bearing
Gear Metal Alloy Gear
Motor Japanese-made Brushless Motor

$280.00

  • Product Code: HBL6625-DroneCAN
  • Availability: In Stock
  • $280.00
  • Ex Tax: $280.00
