DS6630
Gimbal Servo
Torque (4.8V): 3.61 kg-cm / 50.13 oz-in
Torque (6.0V): 4.7 kg-cm / 65.27 oz-in
Speed: 0.13 s (4.8V) / 0.09 s (6.0V)
Weight: 28 g (0.98 oz)

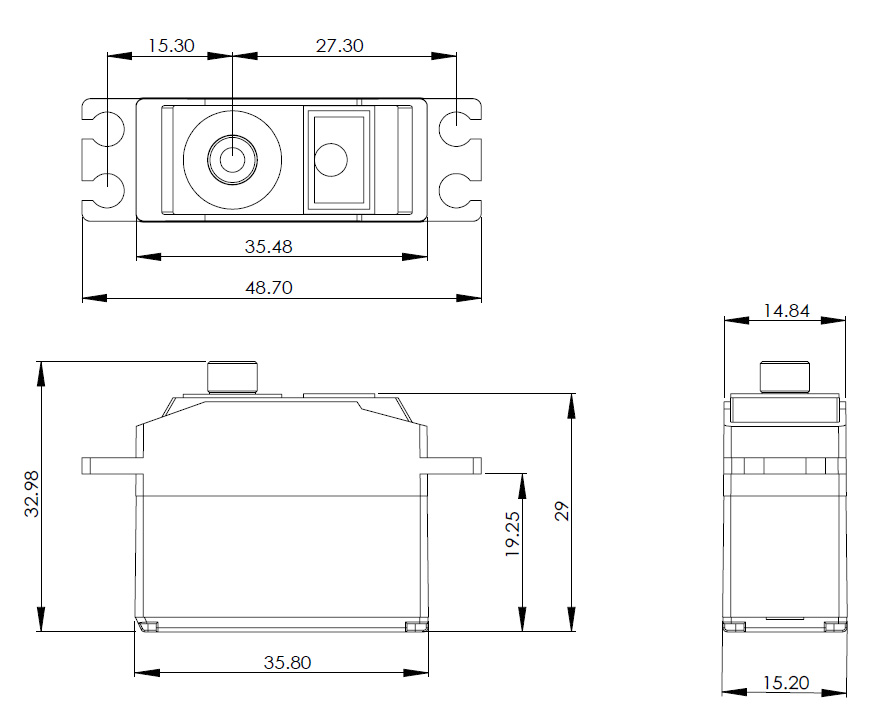

Dimensions：35.8 x 15.2 x 29 mm
| SERVO SPECIFICATION | |
| Stall Torque (kg-cm) | 3.61 (4.8V) / 4.7 (6.0V) |
| Stall Torque (oz-in) | 50.13 (4.8V) / 65.27 (6.0V) |
| No-load Speed | 0.13 s (4.8V) / 0.09 s (6.0V) |
| Working Voltage | 4.8V ~ 7.0V DC Volts |
| Working Frequency | 1520μs / 333hz |
| Dead Band | 0.0008 ms (Default) |
| Bearing | 2* Ball Bearing |
| Gear | Metal Alloy Gear |
| Motor | Coreless Motor |

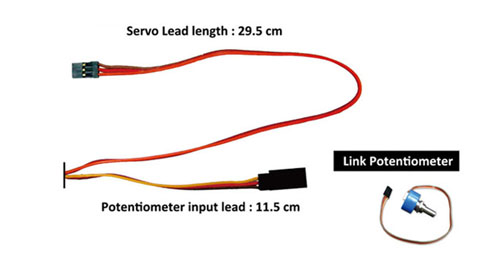

| Wire Length | Servo lead length : 29.5 cm ｜ Potentiometer input lead : 11.5 cm |
$86.71
- Product Code: S0019002
- Availability: In Stock
- $86.71
- Ex Tax: $86.71
