DS1009
Torque (4.8V): 7.04 kg-cm / 97.8 oz-in
Torque (5.5V): 8.06 kg-cm / 111.9 oz-in
Torque (6.0V): 8.8 kg-cm / 122.2 oz-in
Speed: 0.125 s (4.8V) / 0.109 s (5.5V) / 0.100 s (6.0V)
Weight: 56 g (1.97 oz)

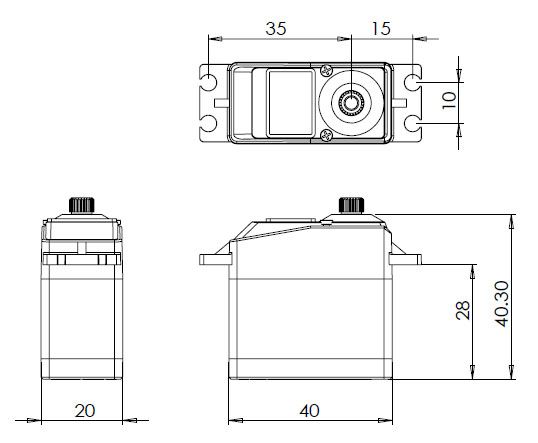

Dimensions：40 x 20 x 40 mm
NOTE:
1. Suggest to use only for RTR and RTF models.
2. Do not use this servo for large helicopters (class 600-800 or higher) or large fuel aircraft.
3. It is not recommended to use this servo for violent 3D flight operations.
| SERVO SPECIFICATION | |
| Stall Torque (kg-cm) | 7.04 (4.8V) / 8.06 (5.5V) / 8.8 kg-cm (6.0V) |
| Stall Torque (oz-in) | 97.8 (4.8V) / 111.9 (5.5V) / 122.2 (6.0V) |
| No-load Speed | 0.125 s (4.8V) / 0.109 s (5.5V) / 0.100 s (6.0V) |
| Stall Current | 1.2A (4.8V) |
| Working Voltage | 4.8V ~ 6.0V DC Volts |
| Working Frequency | 333Hz |
| Dead Band | 0.001ms (Default) |
| Bearing | 2* Ball Bearing |
| Gear | Metal Alloy Gear |
| Motor | DC Motor |
MKS Waterproof / Dustproof Testing
