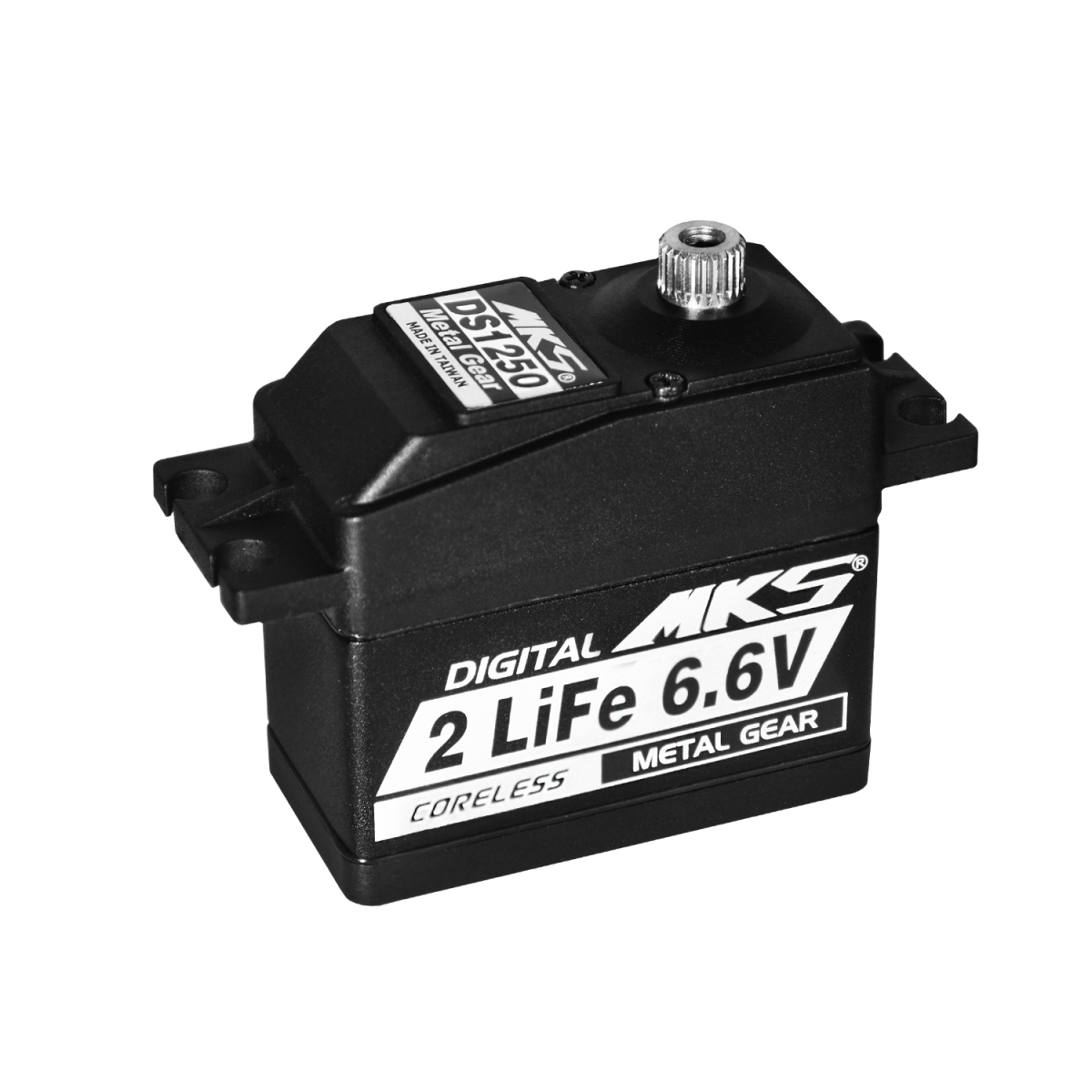

DS1250

- Ideal For 1/10 , 1/8 Scale Buggies, 600~700 Helis CCPM.
- Three Coppers Bushings / Strong, Accurate
- Waterproof Bearing / Dustproof, Waterproof
- Metal Alloy Gear / Wear-resistant, Smooth
- Middle Aluminium Alloy Case / High Heat Dissipation
- Japan High Quality Coreless Motor / Competition Level, High performance, High response, equal level as DS670.

Providing high speed, incredible efficiency, and low power consumption.

Torque (6.0V): 11.7 kg-cm / 162.5 oz-in

Torque (6.8V): 14.3 kg-cm / 198.6 oz-in

Speed: 0.075 s (6.0V) / 0.066 s (6.8V)

Weight: 57.65 g (2.03 oz)

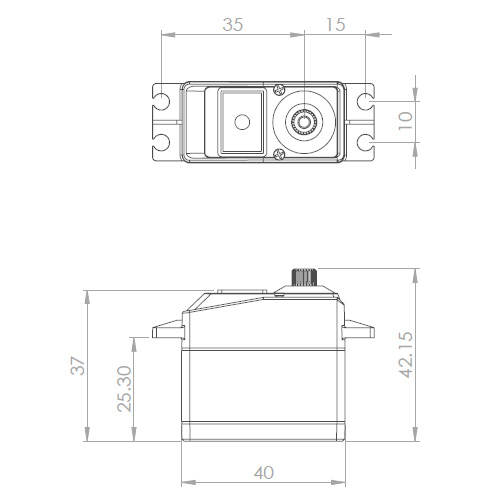

Dimensions：40 x 20 x 37 mm

SERVO SPECIFICATION
Torque (kg-cm)	11.7 (6.0V) / 14.3 (6.8V)
Torque (oz-in)	162.5 (6.0V) / 198.6 (6.8V)
Speed	0.075 s (6.0V) / 0.066 s (6.8V)
Stall Current (at locked load)	4.1A (6.0V) / 4.6A (6.8V)
Working Voltage	3.8 ~ 6.8 V DC Volts
Working Frequency	1520μs / 333Hz
Dead Band	0.0008ms (Default)
Bearing	2* Ball Bearing
Gear	Metal Alloy Gear
Motor	Japanese-made Coreless Motor
